HTC J Butterfly (HTL21) ver 1.39.970.1 Unlock sim + Rom Tiếng Việt 4.4.2 ok

thuandiennang · 9/6/14

HTC J Butterfly (HTL21) ver 1.39.970.1 Unlock sim + Rom Tiếng Việt 4.4.2 ok

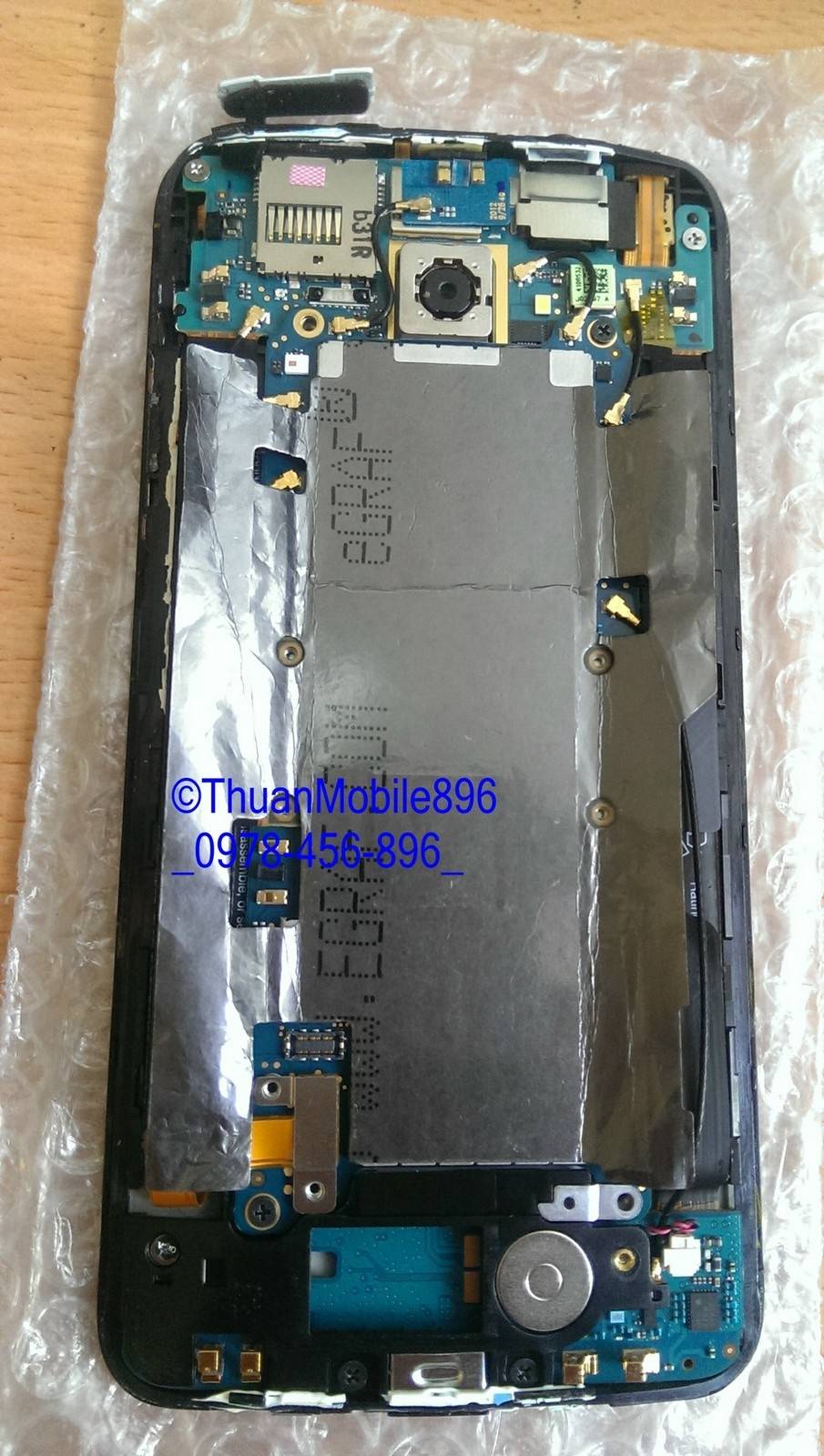

-repair =riff box, s-off + convert HTL21 thành x920d (deluxe_ub1)
-up rom kitkat 4.4.2 tiếng việt, sóng 2g-3g ổn định.

HTC Bytterfly x920d

ROM

BOA Butterfly ROM (x920d dlxub1)
Based on HTC One(M7) 4.20.709.14 TW Version Transplant
.....

Kernel
Based on Zarboz*s kernel
Added：Force Fast Charge
Added: Userspace Voltage control c/o
.....

BOA Butterfly V8.2 versions
ROM update：
2014-3-5 A4TW BOA Butterfly V8.2
Updates & Bug Fixes:
- Added version 4.3 gadget
- (Htc3DRichNotesWidget)
- (HtcMailWidgets)
- (HtcPhotoWidget)
- (MyTaskWidget)

....Link BOA-Butterfly-V8.2

nguồn: xda
Click to expand...

****************

***************

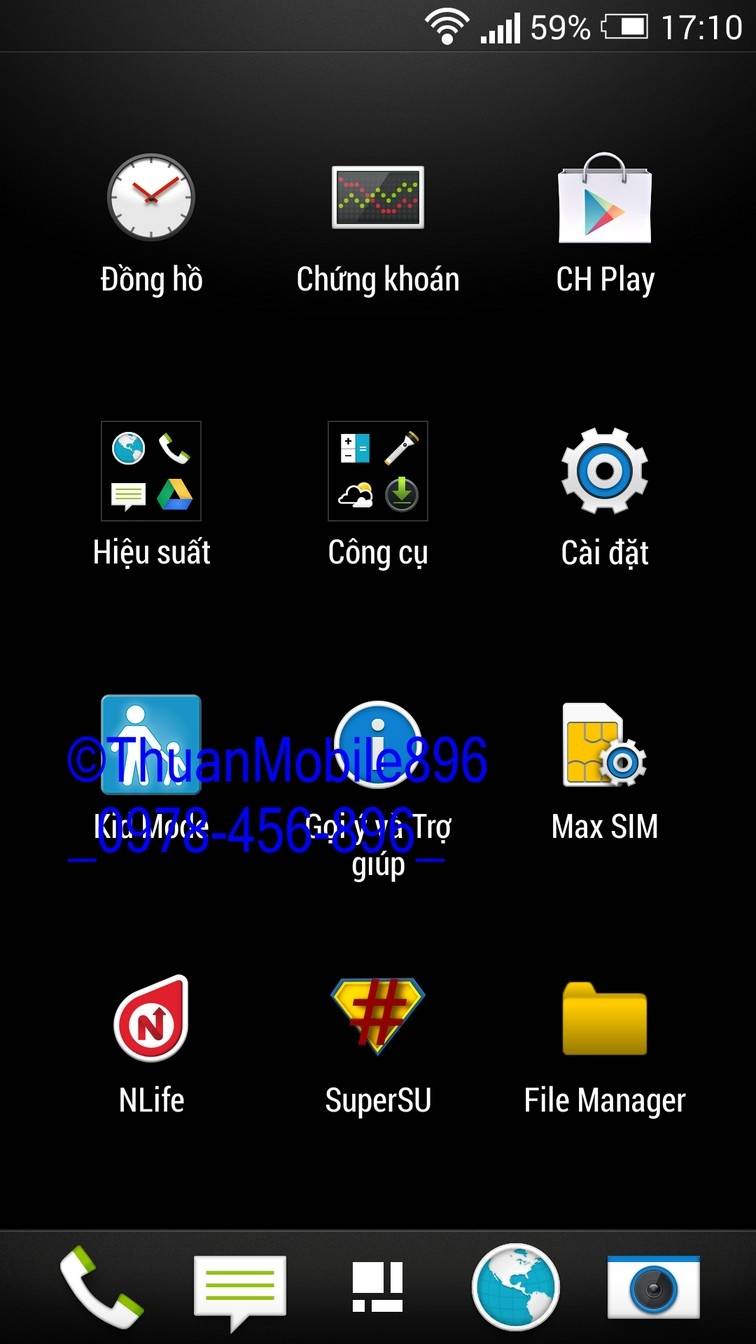

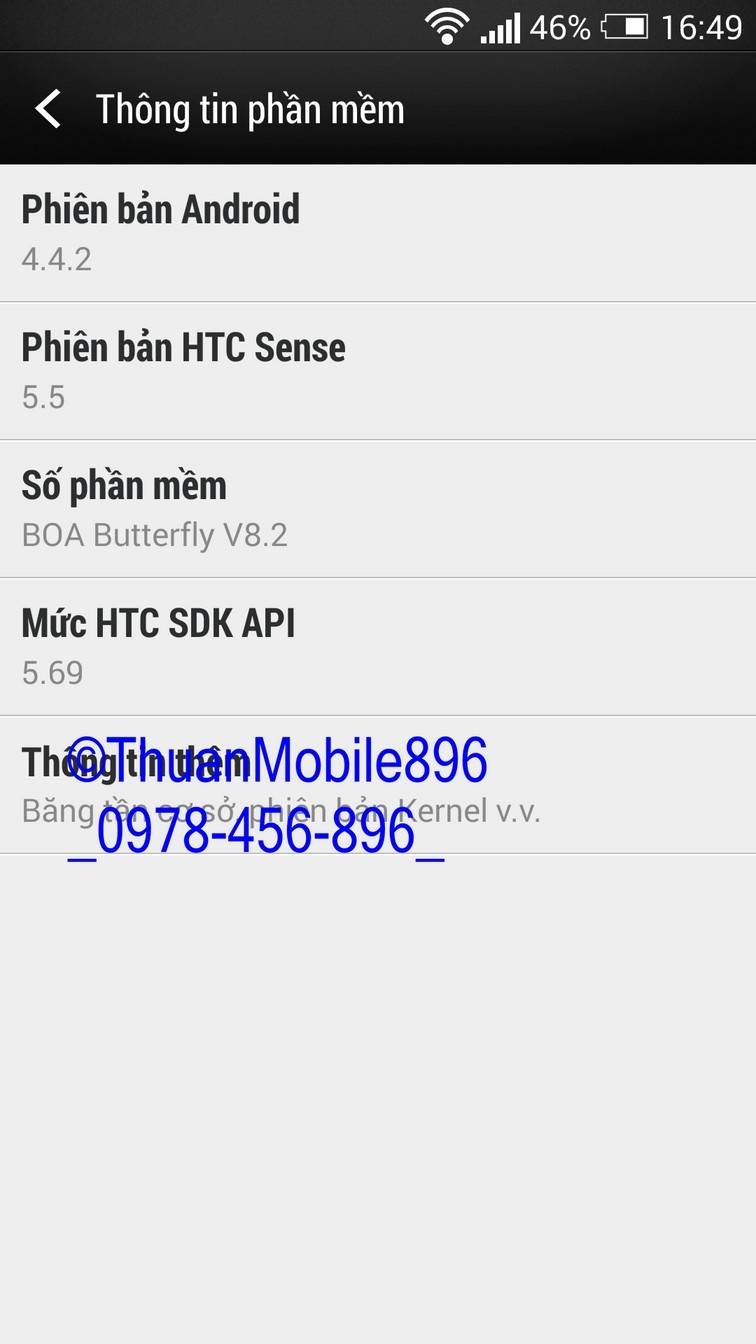

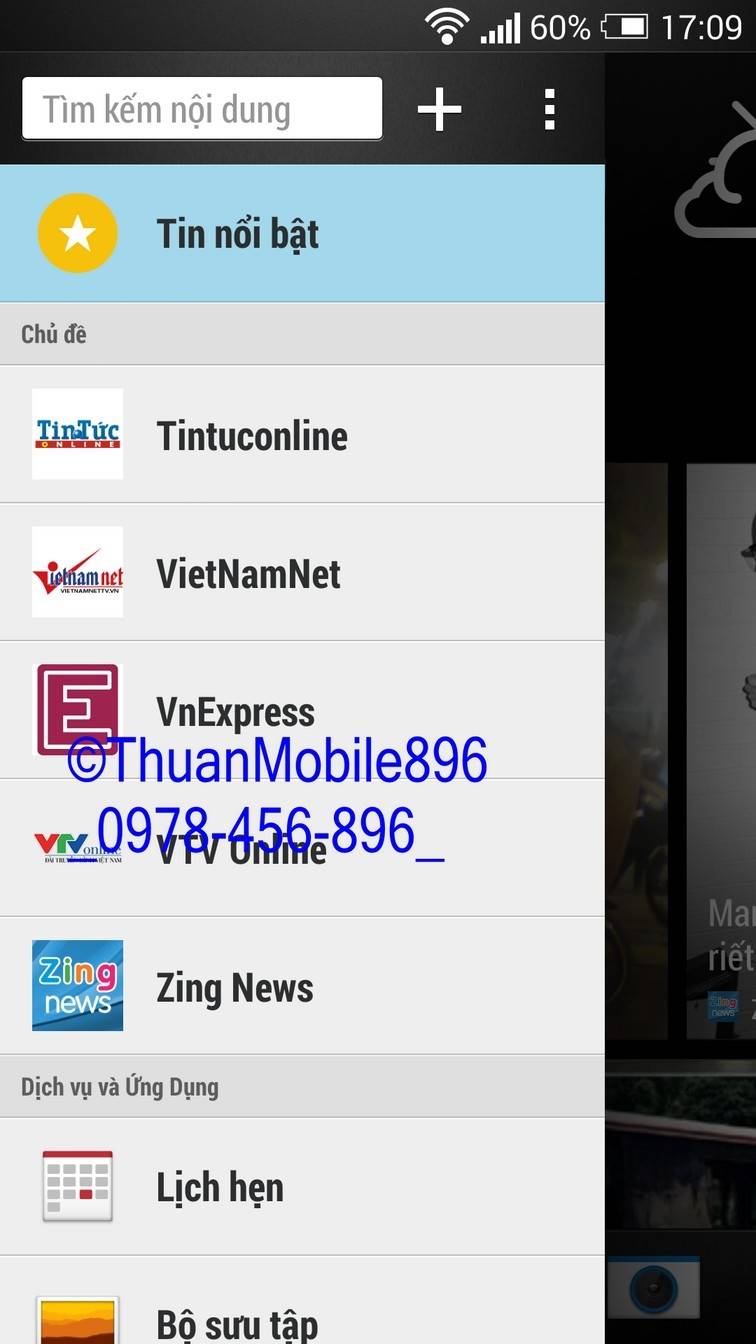

Rom kitkat 4.4.2 tiếng việt, sóng 2g-3g ổn định.

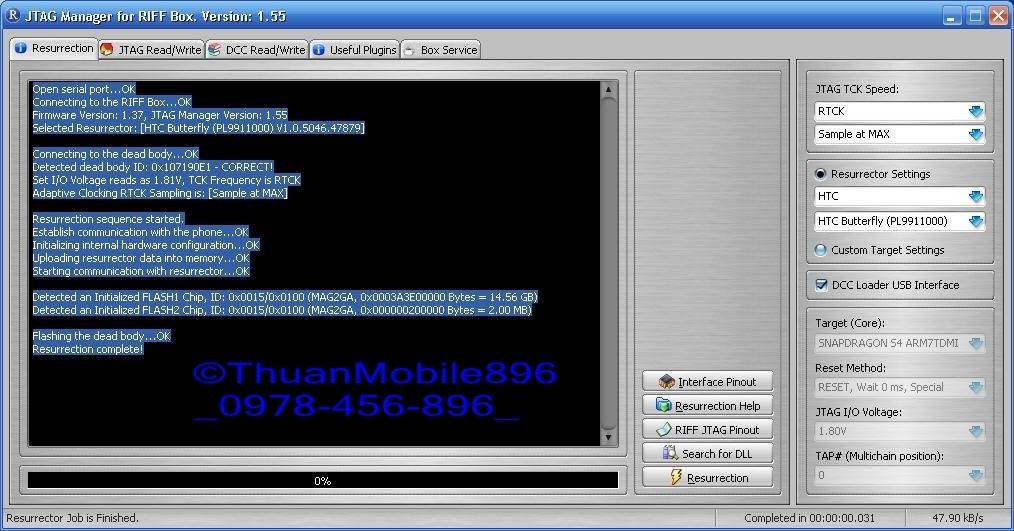

---log cmd---

Open serial port...OK
Connecting to the RIFF Box...OK
Firmware Version: 1.37, JTAG Manager Version: 1.55
Selected Resurrector: [HTC Butterfly (PL9911000) V1.0.5046.47879]

Connecting to the dead body...OK
Detected dead body ID: 0x107190E1 - CORRECT!
Set I/O Voltage reads as 1.81V, TCK Frequency is RTCK
Adaptive Clocking RTCK Sampling is: [Sample at MAX]

Resurrection sequence started.
Establish communication with the phone...OK
Initializing internal hardware configuration...OK
Uploading resurrector data into memory...OK
Starting communication with resurrector...OK

Detected an Initialized FLASH1 Chip, ID: 0x0015/0x0100 (MAG2GA, 0x0003A3E00000 Bytes = 14.56 GB)
Detected an Initialized FLASH2 Chip, ID: 0x0015/0x0100 (MAG2GA, 0x000000200000 Bytes = 2.00 MB)

Flashing the dead body...OK
Resurrection complete!

C:\adb>cmd
Microsoft Windows XP [Version 5.1.2600]
(C) Copyright 1985-2001 Microsoft Corp.

C:\adb>fastboot getvar all
INFOversion: 0.5
INFOversion-bootloader: 1.41.0000
INFOversion-baseband: 1.01.12.1122
INFOversion-cpld: None
INFOversion-microp: None
INFOversion-main: 1.39.970.1
INFOversion-misc: PVT SHIP S-ON
INFOserialno: FA32PS503306
INFOimei: 355027050364474
INFOmeid: 00000000000000
INFOproduct: deluxe_ub1
INFOplatform: HBOOT-8064
INFOmodelid: PL9910000
INFOcidnum: 11111111
INFObattery-status: good
INFObattery-voltage: 3866mV
INFOpartition-layout: Generic
INFOsecurity: on
INFObuild-mode: SHIP
INFOboot-mode: FASTBOOT
getvar:all FAILED (status read failed (Too many links))

C:\adb>
---
Click to expand...

---

C:\adb>fastboot getvar all
INFOversion: 0.5
INFOversion-bootloader: 1.41.0000
INFOversion-baseband: 1.01.12.1122
INFOversion-cpld: None
INFOversion-microp: None
INFOversion-main: 1.39.970.1
INFOversion-misc: PVT SHIP S-OFF
INFOserialno: FA32PS503306
INFOimei: 355027...4474
INFOmeid: 00000000000000
INFOproduct: deluxe_ub1
INFOplatform: HBOOT-8064
INFOmodelid: PL9910000
INFOcidnum: 22222222
INFObattery-status: good
INFObattery-voltage: 3854mV
INFOpartition-layout: Generic
INFOsecurity: off
INFObuild-mode: SHIP
INFOboot-mode: FASTBOOT
INFOcommitno-bootloader: e5972681fe96ed0065a3869f9a5a46945ca7152
getvar:all FAILED (status malformed (1 bytes))

C:\adb>fastboot oem rebootRUU
... INFOhbootpreupdate: 11
INFOStart Verify: 0
FAILED (status read failed (Too many links))

C:\adb>fastboot flash zip X920dradio.zip
sending *zip* (18469 KB)... OKAY
writing *zip*... INFOzip header checking...
INFOzip info parsing...
INFOchecking model ID...
INFOchecking custom ID...
INFOstart image[radio] unzipping & flushing...
INFO[RUU]UZ,radio,0
INFO[RUU]UZ,radio,8
INFO[RUU]UZ,radio,16
INFO[RUU]UZ,radio,24
INFO[RUU]UZ,radio,32
INFO[RUU]UZ,radio,40
INFO[RUU]UZ,radio,48
INFO[RUU]UZ,radio,56
INFO[RUU]UZ,radio,64
INFO[RUU]UZ,radio,72
INFO[RUU]UZ,radio,80
INFO[RUU]UZ,radio,99
INFO[RUU]UZ,radio,100
INFO[RUU]WP,radio,0
INFO[RUU]WP,radio,31
INFO[RUU]WP,radio,63
INFO[RUU]WP,radio,95
INFO[RUU]WP,radio,100
INFO...... Successful
OKAY

C:\adb>fastboot reboot-bootloader
rebooting into bootloader... OKAY

C:\adb>adb reboot bootloader
adb server is out of date. killing...
* daemon started successfully *

C:\adb>fastboot getvar all
< waiting for device >
INFOversion: 0.5
INFOversion-bootloader: 1.41.0000
INFOversion-baseband: 3A.21.306.10
INFOversion-cpld: None
INFOversion-microp: None
INFOversion-main: 1.15.970.1
INFOversion-misc: PVT SHIP S-OFF
INFOserialno: FA32PS503306
INFOimei: 35502...4474
INFOmeid: 00000000000000
INFOproduct: deluxe_ub1
INFOplatform: HBOOT-8064
INFOmodelid: PL9910000
INFOcidnum: 22222222
INFObattery-status: good
INFObattery-voltage: 3915mV
INFOpartition-layout: Generic
INFOsecurity: off
INFObuild-mode: SHIP
INFOboot-mode: FASTBOOT
getvar:all FAILED (status read failed (Too many links))

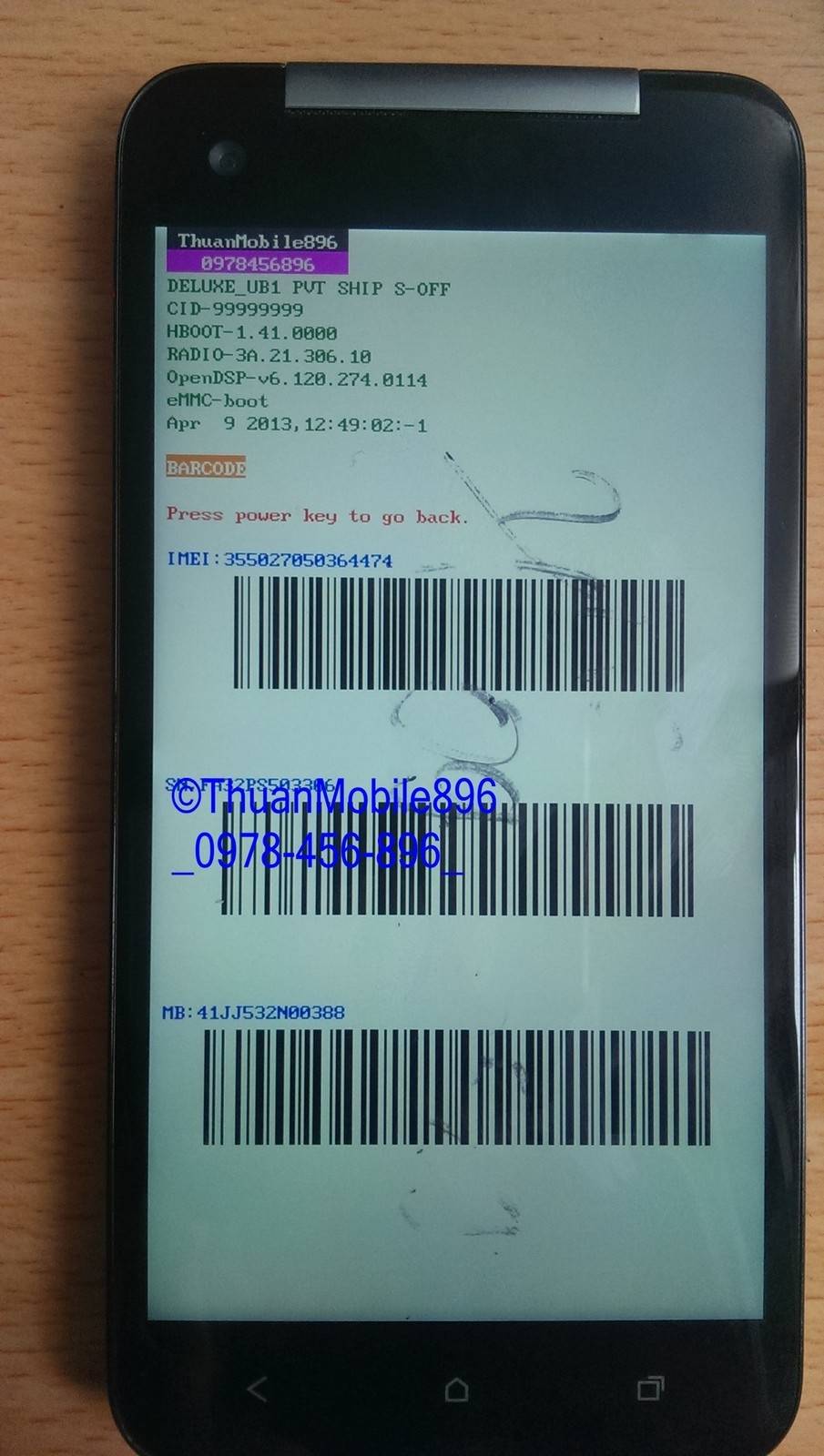

C:\adb>fastboot oem writecid 99999999
... INFOStart Verify: 0
OKAY

C:\adb>adb shell
adb server is out of date. killing...
* daemon started successfully *
root@dlxub1:/ # partitions

major minor #blocks name

179 0 15267840 mmcblk0
179 1 128 mmcblk0p1
179 2 256 mmcblk0p2
179 3 130671 mmcblk0p3
179 4 1 mmcblk0p4
179 5 16 mmcblk0p5
179 6 256 mmcblk0p6
179 7 15577 mmcblk0p7
179 8 256 mmcblk0p8
179 9 1024 mmcblk0p9
179 10 256 mmcblk0p10
179 11 2048 mmcblk0p11
179 12 2080 mmcblk0p12
179 13 5120 mmcblk0p13
179 14 1024 mmcblk0p14
179 15 1024 mmcblk0p15
179 16 51200 mmcblk0p16
179 17 10240 mmcblk0p17
179 18 8190 mmcblk0p18
179 19 16384 mmcblk0p19
179 20 16383 mmcblk0p20
179 21 1022 mmcblk0p21
179 22 4096 mmcblk0p22
179 23 4096 mmcblk0p23
179 24 20480 mmcblk0p24
179 25 4 mmcblk0p25
179 26 256 mmcblk0p26
179 27 16 mmcblk0p27
179 28 1280 mmcblk0p28
179 29 64 mmcblk0p29
179 30 1024 mmcblk0p30
179 31 98727 mmcblk0p31
179 32 1900543 mmcblk0p32
179 33 393215 mmcblk0p33
179 34 12451840 mmcblk0p34
179 35 20480 mmcblk0p35
root@dlxub1:
emmc

dev: size erasesize name
mmcblk0p21: 000ffa00 00000200 "misc"
mmcblk0p20: 00fffe00 00000200 "recovery"
mmcblk0p19: 01000000 00000200 "boot"
mmcblk0p32: 73fffc00 00000200 "system"
mmcblk0p28: 00140200 00000200 "local"
mmcblk0p33: 17fffe00 00000200 "cache"
mmcblk0p34: 2f8000000 00000200 "userdata"
mmcblk0p24: 01400000 00000200 "devlog"
mmcblk0p26: 00040000 00000200 "pdata"
mmcblk0p29: 00010000 00000200 "extra"
mmcblk0p16: 03200200 00000200 "radio"
mmcblk0p17: 00a00000 00000200 "adsp"
mmcblk0p15: 00100000 00000200 "dsps"
mmcblk0p18: 007ffa00 00000200 "radio_config"
mmcblk0p22: 00400000 00000200 "modem_st1"
mmcblk0p23: 00400000 00000200 "modem_st2"
mmcblk0p30: 00100000 00000200 "cdma_record"
mmcblk0p31: 06069e00 00000200 "reserve"
root@dlxub1:/ #
C:\adb>adb reboot bootloader
adb server is out of date. killing...
* daemon started successfully *

C:\adb>
Click to expand...
